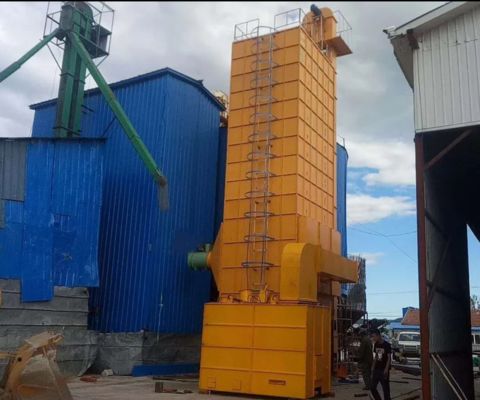

40 Tons Capacity Maize Dryer with Low Temperature Circulating and Fast Installation for Grain Drying
ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง
WhatsApp:0086 18588475571
วีชัต: 0086 18588475571
สกายเป้: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| พิมพ์ | ประเภทแบทช์ | การใช้งาน | การอบแห้งเมล็ดพืช |
|---|---|---|---|
| เขตอบแห้ง | สแตนเลส | มิติตัวถัง | 2900*2260*12700มม |
| การใช้อากาศ | 100000-14000M3/H | พลัง | 21.7กิโลวัตต์ |
| การรับประกัน | 1 ปี | น้ำหนักขั้นต้น | 6500 กก |
| เน้น | 40 ton maize drying machine,circulating batch tower dryer,china maize dryer manufacturer |
||
รายละเอียดสินค้า
Presun Maize Dryer
We can meet your any special requirements, such as: Add insulation. Use special heat source(biomass, rice husk, diesel, coal, electric, steam, etc.), special designed, Special accessories, etc.
1. Speedy Drying Maize
2. User friendly & Easy Maintenance.
3. High Durability
4. Fast installation.
5. Multiple safety devices.
1. Speedy Drying Maize
2. User friendly & Easy Maintenance.
3. High Durability
4. Fast installation.
5. Multiple safety devices.
This vertical dryer is suitable for drying rice, wheat, corn, soybean and other grains.
Technical Parameters
| Model | 5HPX-30 |
| Loading capacity | 30Tons |
| Dimension | 2900*2260*12700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 5.5KW |
| Drying Rate | 0.6~1.4% |
| Heat Consumption | <30,000 KCalorie |
| Weight | 6,500KG |
| Standard Device | Moisture Meter,Conveyor,Fan |
How Did This Dryer Work?
1)Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
2)After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
3)When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
4)The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
5)Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
6)Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

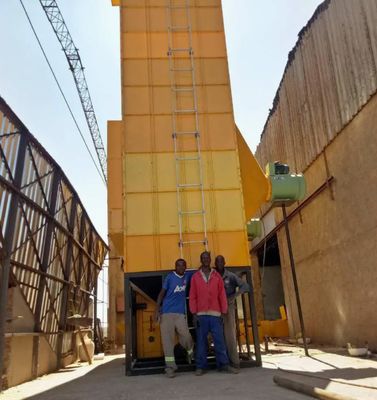

What's The Drying Plant Looks Like?
Applicants
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Who Are We
PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:
1)We are located at Hefei City,Anhui Prov,China
2)Have more than 11 years experience at grain drying industry
3)10,000 square meters workshop
4)5,000 sets dryer already installed worldwide
5)600-1,000 sets dryer sold every year
6)ISO 9001 certificated company
7)Listed company since 2017
